Please note that processing time is approximately 6 weeks.
Restored Denon DP-59L
Original casing new painted (according to customer requirements)
General
Manufacturer: Denon
Model: DP-59 L
Years of manufacture: 1986 - 1992
Made in: Japan
Power consumption: 10 W
Dimensions: 490 x 219 x 410 mm (W x H x D)
Weight: 15 kg
Technical specifications
Drive: Servo-controlled direct drive
Speed: 33 1/3 / 45
Speed deviation: < 0.002%
Speed fine adjustment: ± 9.9% quartz-stabilized
Wow and flutter: < 0.006% WRMS
Rumble-to-noise ratio: 82 dB (DIN B)
Turntable: Die-cast aluminum, 7 mm thick, 2.2 kg, 325 mm diameter
Tonearm: Effective length 244 mm, straight design, statically balanced, stylus overhang 14 mm, tangential tracking error angle < 2.5°, adjustable tracking force: 0 - 3 g, cartridge: PCL-59, electronic anti-skating device (rotary control)
Special Features
Microprocessor-controlled contactless "Dynamic Servo Tracer"
Tonearm with Q-damping
Solid turntable (2.2 kg) driven by a high-torque servo motor
Quartz-stabilized speed control
LCD display, pitch control
What we do...
General:
Optical, mechanical, and electronic overhaul, inspection and error diagnosis, complete disassembly, restoration of cabinet parts, assembly, readjustment, endurance testing, cleaning, polishing, and final inspection.
Electronic:
Replacement of all electrolytic capacitors with high-quality components. Circuit boards, conductor tracks, and contact points checked and cleaned. Alignment of all measuring points. Functional test and test run. VDE safety test.
Case:
The case is refurbished, re-veneered, and finished with a high-gloss lacquer. An RCA terminal is installed on the rear panel for all necessary cable connections.
Device Feet:
Height-adjustable device feet made of solid stainless steel. Diameter 65 mm, height 25 mm, total weight 2520 g.
Ortofon OM5E Cartridge:
The Ortofon OM5E is a full-fledged cartridge. It impresses with its temperament and neutral basic character. The OM5E features an elliptical cut that enables balanced and distortion-free reproduction.

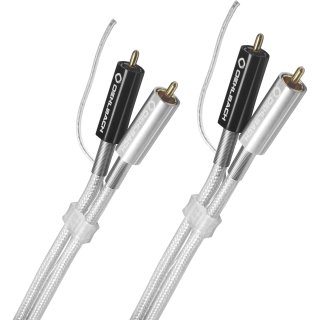

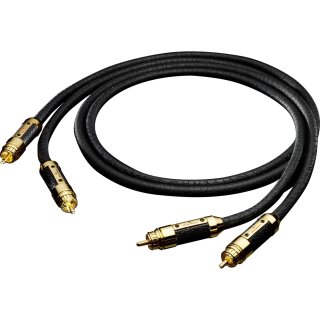

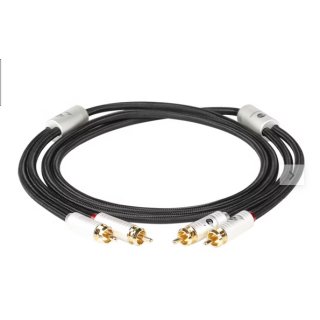

Audio Cable:
New brand-name cable. Pre-assembled analog audio RCA cable for turntable cabling! Thanks to the particularly high-quality oxygen-free copper (OFC) inner conductor, this quality cable ensures true-to-life signal transmission. The 24-carat gold-plated connectors guarantee reliable contact and corrosion protection. The cable delivers a neutral sound with good dynamics and spatiality.
Stainless steel record weight:
His weight it ensures that the record rests flat on the platter and spins smoothly. Using it increases the sound performance of your system.
