Restored Denon DP-47F fully automatic turntable glitter red high gloss

  • Operating voltage can be selected for each country
  • Directly driven fully automatic
  • MM cartridge: Ortofon Vinyl Master Alpha
  • Casing with glitter veneer and high-gloss finish
  • Device feet: stainless steel, height-adjustable
  • Basic dimensions: 43.5cm x 40cm x 17cm
  • Incl. accessories: plate weight, audio cinch cable, power etc. Ground cable
cartridge
dust cover
Case
LED control lighting
Revision type
Operating voltage
from
2.080,00 €
incl. 0% VAT , incl. shipping costs (10Kg)
  • Delivery time: 2 - 3 Workdays (Other countries)
Description

Technical data:
Functions: start, stop, speed: 33 1/3 & 45, limit switch, repeate, up-lifter, locate
Drive: Servo controlled direct drive
Speed deviation: < 0.002%
Synchronization fluctuations: < 0.010%wrms
Rumble noise ratio: 78 db (DIN B)
Platter: die-cast aluminum, 310 mm
Tonearm: eff. Length: 220 mm, design: straight, dynamically balanced
Needle overhang: 16mm adjustable
adjustable support weight: 0 - 3 g
System carrier: PCL-40
Frequency range: 20Hz - 50kHz
rec. Support weight: 16 ± 3mN

Special features:
Microprocessor-controlled contactless "Dynamic Servo Tracer" tonearm with Q-damping
High speed stability thanks to the quartz-controlled tacho generator principle

Revision type standard:
The circuit boards and contact points are cleaned and photoresistors are replaced. Adjustment/checking of the setting for the starting point (30/17), limit switch, support weight, function test and test run. VDE safety test.

Housing:
The original case has been restored and redesigned with glitter veneer. The then applied high-gloss varnish gives the case an elegant look. The connection panel for all required cable connections is located on the back.

Stainless steel device feet:
Height adjustable. The contact area with the substructure is reduced to a minimum by three embedded rubber buffers. Resonances and feedback are thus effectively prevented. Perfect surface, total weight 2520g, diameter 65mm, height without damping rubber 25mm, height with damping rubber 26mm.

Pickup:
Ortofon Master Alpha (MM System). With the VM series, Ortofon has long created the reference MM cartridge, the long production time and the characteristic needle body are well known all over the world. The Vinyl Master Alpha (identical to VM White) is the entry into the series and is a great entry-level system for mid-range turntables. The VM series from Ortofon is compatible with each other. So you can start with a VM Alpha and then improve the quality with the appropriate needle slot by using the next higher needle slot.

Audio cable:
Branded cable. Ready-made analog audio cinch cable for cabling turntables! Thanks to the particularly high-quality inner conductor made of oxygen-free copper (OFC), this quality cable ensures true-to-life signal transmission. Contact security and corrosion protection are guaranteed by the 24 carat gold-plated plug contacts. The cable has a neutral sound with good dynamics and spaciousness.

Plate weight:
Made of demagnetized stainless steel. With a weight of 310g, it ensures that the record sits smoothly on the plate and runs smoothly. This record weight is in the “medium” weight class. It builds up just enough weight to dampen the vibrations of the plate without putting any strain on the bearing bushes. By using it, you increase the sound performance of your system.

Operating voltage:
We ship the Denon DP-47F to all countries worldwide. The voltage is changed by an internal transformer, optionally with 100 to 240 volts. The country-specific power cable is also included.


OPTIONAL (with EXTRA CHARGE)

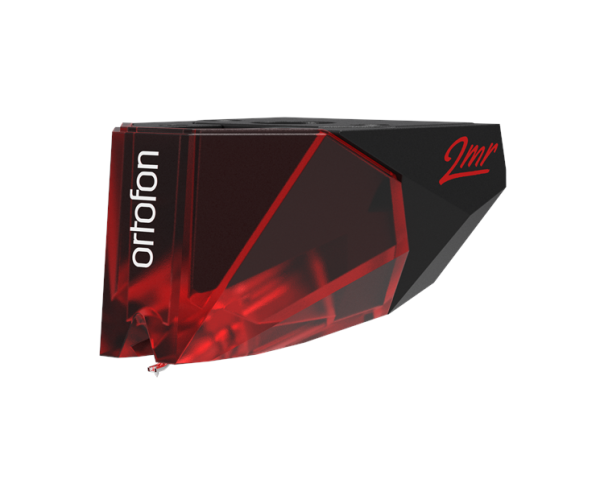

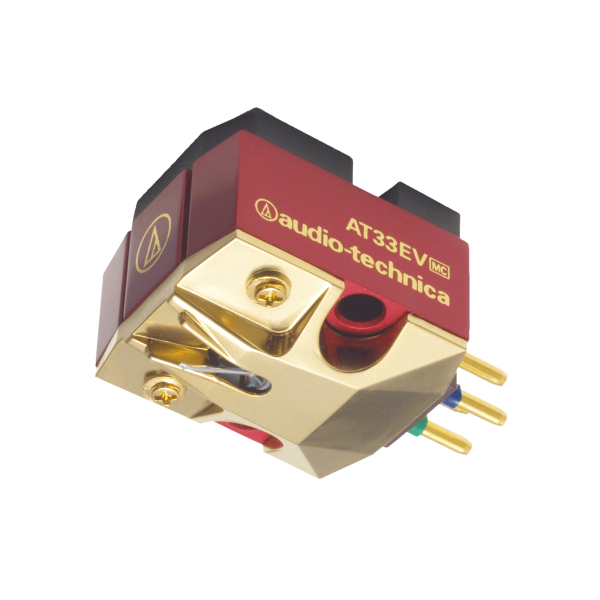

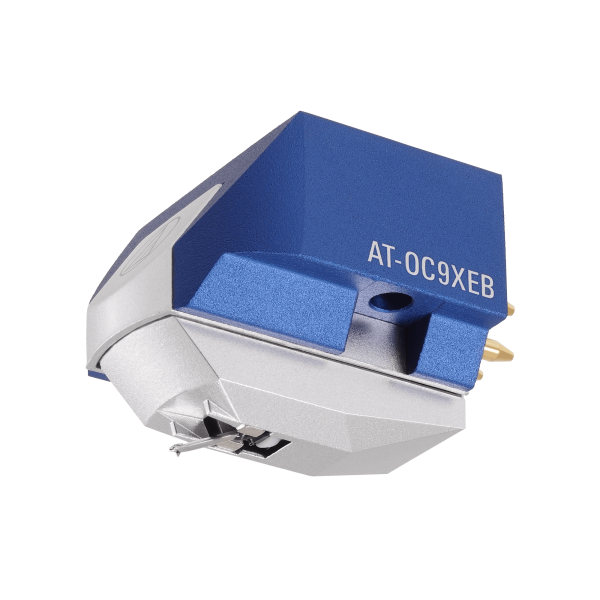

Upgrade pickup:
Ortofon or audio-technica

New housing:
The housing is made of 16mm MDF and consists of two individual parts, the housing frame and the housing base. More stability, more weight, less vibration! The connection panel for all required cable connections is located on the back. There are 4 threaded sockets embedded in the base for variable installation of different device base variants.

Dust cover and hinges:
High-quality acrylic hood, wall thickness 4mm, material Plexiglas XT (cast and extruded), transparency absolutely colorless and clear, robustness, break-proof to impact-resistant, unrivaled weather and weather resistance. Age-resistant with 10-year material guarantee, high-quality surface and flatness, shiny. Original hinges in mint condition.

Complete revision:
Replacement of all electrolytic capacitors (37 pieces) on the main and. Motor board made by high quality Panasonic. Circuit boards and contact points cleaned, photoresistors replaced. Adjustment/checking of the setting for the starting point (30/17), limit switch, support weight, function test and test run. VDE safety test
